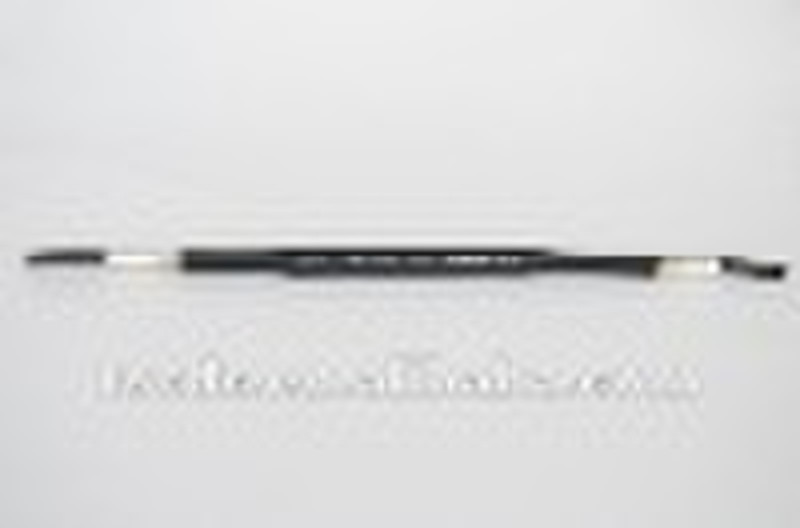

RSY heat shrinkable tube closure for non-pressuriz

RSY Heat shrinkabletube for non-pressurized cable network maintenance 1. General RSY tubing closure consists of a heat shrinkable tube, an aluminum canister as splice protection and a shield continuity lead with two clips which are connected to the cable shields. The tube is made from high performance, cross-linked polyolefine and coated with a special hot melt adhesive on the inside. The adhesive and the shrinking force guarantee a tight and reliable bonding to the cable sheath to fill any cavities or uneven surface. A thermosensitive paint on the outside of the wrap-around sleeve indicates that proper shrink temperature by changing its color. 2. Features ---No special skills or equipment are necessary for installation. ---High mechanical stability due to internal aluminum canister ---Sleeve coated internally with hot melt adhesive for perfect watertight seal on plastic and metal sheath cables ---Conversion of thermosensitive color for indication of proper shrink temperature ---High shrink ratio of RSY allows it to accommodate different cable diameters. 3. Application ---For straight or branch splices in the distribution network of local telephone cable systems ---RSY closures can be installed on filled or unfilled non-pressurized and up to 40kPa pressurized telecommunication cables with plastic or metal sheath ---RSY closures are suitable for aerial application 4. Specification No.SpecificationMax. Splice Dia.(mm)Min. Cable Dia.(mm)Opening length(mm)Sleeve length(mm)Cable pairs(for reference)Straight (branch) joint for non-pressurized cableStraight (branch) joint for jelly-filled cableWire Dia.0.5mmWire Dia.0.4mm1RSY18/9-170RSYT18/9-1701871704505-10≤102RSY(F)23/12-210RSYT(F)23/12-210231221050010-25253RSY(F)30/15-250RSYT(F)30/15-250301525056030-50504RSY(F)40/18-300RSYT(F)40/18-30040183006101001005RSY(F)50/22-400RSYT(F)50/22-4005022400800100-1501506RSY(F)62/25-500RSYT(F)62/25-5006225500900150-2002007RSY(F)75/25-500RSYT(F)75/25-5007525500900200-400300-5008RSY(F)92/30-500RSYT(F)92/30-5009230500900400-600600-8009RSY(F)122/38-500RSYT(F)122/38-50012238500900600-1200800-140010RSY(F)160/55-500RSYT(F)160/55-500160555009001400-20001400-240011RSY(F)175/60-500RSYT(F)175/60-500175605009002400-300012RSY(F)200/65-500RSYT(F)200/65-500200655009003000-3600 5. Components -Heat shrinkable tube -Aluminium canister -Sheath connector assembly -Branch off clip -Emery strip -Cleaning tissue -Adhesive aluminium tape -Adhesive PVC tape -Install instruction -Petroleum jelly -Polyester film
