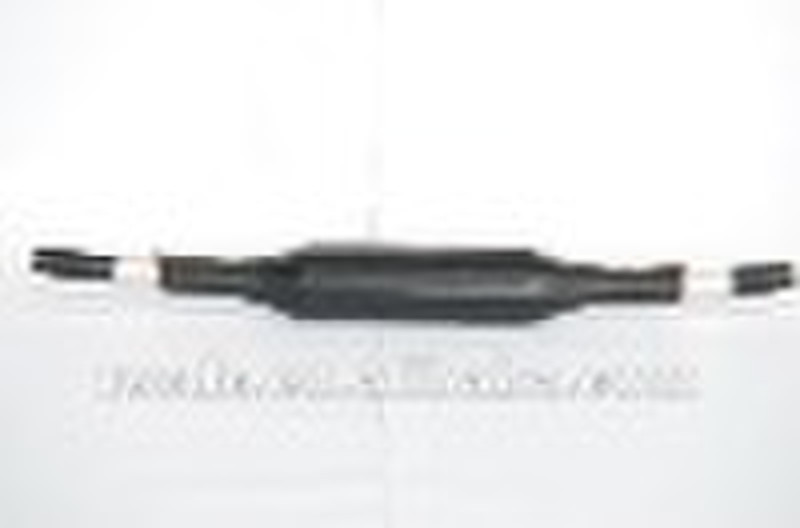

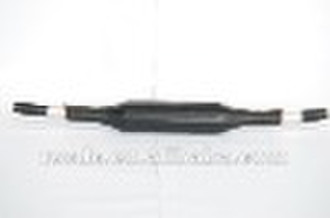

RSBJ Fiber-reinforced Moisture-proof Heat Shrinkable Sleeve 1. General RSBJ is based on a unique glass fiber reinforced heat shrinkable composite material. This new revolutionary material offers extra ordinary mechanical and environmental protection. Its reinforced material structure has an excellent split resistance during installation and superior mechanical toughness. An integral metal layer which shrinks with the sleeve protects the joint from moisture vapour transmission. The inner coating of hot melt adhesive guarantees a watertight and secure bonding to plastic and metal-sheathed cables. The white line inside of the trajectory and the temperature-sensitive paint on the sleeve can lead a good and right operation. The reinforced branch-off and straight closures have been developed to meet the increased demand in cable networks. 2. Features ---High split resistance due to fiber reinforced layer ---Limitation of split propagation in case of external damage to the sleeve ---The moisture-proof aluminium layer between the fiber-reinforced layer and hot melt adhesive make the closure perform superior moisture-proof function ---Reliable hot melt seal of splice against humidity ---Hot melt adhesive with wide temperature range ---Insensitive to sharp flame setting ---Range of closures to suit all cable sizes ---Few components, fast and easy installation 3. Application ---RSBJ closures are suitable for non-pressurized and up to 40kPa pressurized telecom cables with lead or polylene sheaths including jelly filled cables which are aerial, buried and in manholes. ---RSBJ are suitable for use in manholes, for buried and aerial cables with polyethylene, lead and aluminium sheathing. ---RSBJ closures are applicable both for straight as well as branch joints. 4. Specification No.SpecificationMax. Splice Dia.(mm)Min. Cable Dia.(mm)Opening length(mm)Sleeve length(mm)Cable pairs(for reference)Straight (branch) joint for low-pressurized cableStraight (branch) joint for jelly-filled cableWire Dia.0.5mmWire Dia.0.4mm1RSBJ(F)32/11-200RSBJT(F)32/11-200321120045010-5015-502RSBJ(F)42/15-200RSBJT(F)42/15-200421520045050-10050-1003RSBJ(F)50/18-400RSBJT(F)50/18-4005018400700100-150100-1504RSBJ(F)62/22-500RSBJT(F)62/22-5006222500850100-200150-2005RSBJ(F)75/25-500RSBJT(F)75/25-5007525500850200-400300-5006RSBJ(F)92/30-500RSBJT(F)92/30-5009230500850400-600600-8007RSBJ(F)122/38-500RSBJT(F)122/38-50012238500900600-1200800-14008RSBJ(F)160/55-500RSBJT(F)160/55-500160555009501400-20001400-24009RSBJ(F)175/60-500RSBJT(F)175/60-500175605009502400-300010RSBJ(F)200/65-500RSBJT(F)200/65-500200655009503000-3600 5. Components -Heat shrinkable sleeve with a moisture-proof aluminium layer -Aluminium canister -Sheath connector assembly -Branch off clip -Emery strip -Cleaning tissue -Adhesive aluminium tape -Adhesive PVC tape -Stainless steel channel -Connection clip -Petroleum jelly -Polyester film -Install instruction S
